Please note: Packing list is not include any SSD/HDD
If you insert two SSD at the same time, it can only recognize one SSD(M.2 NGFF SSD) first, but the MSATA hard disk doesn\'t work. (when the M.2 hard disk is inserted, the light is on. When the MSATA hard disk is inserted, the light is not lit.)
100% brand new.

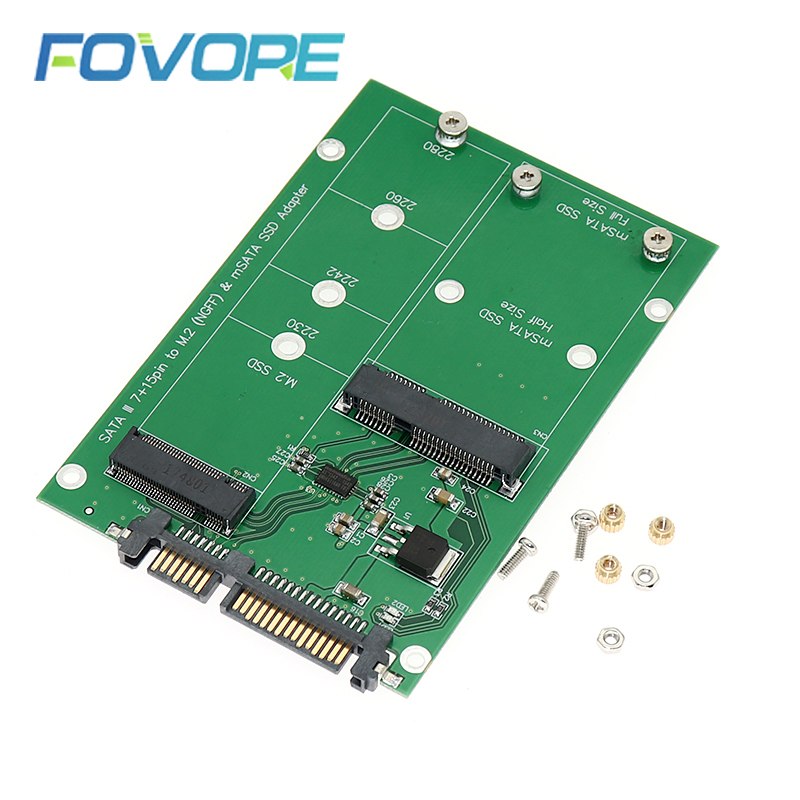

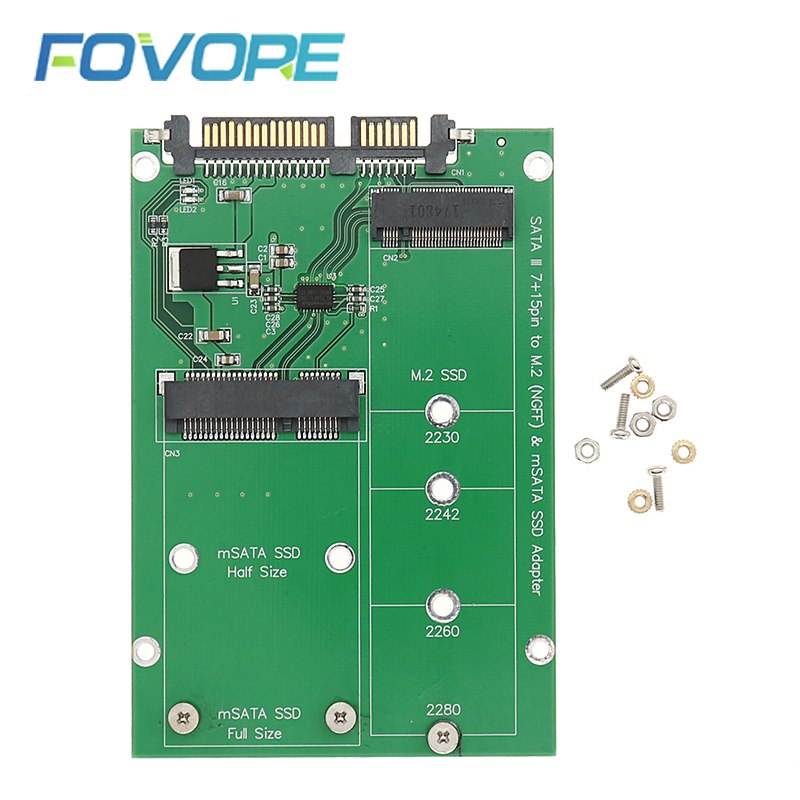

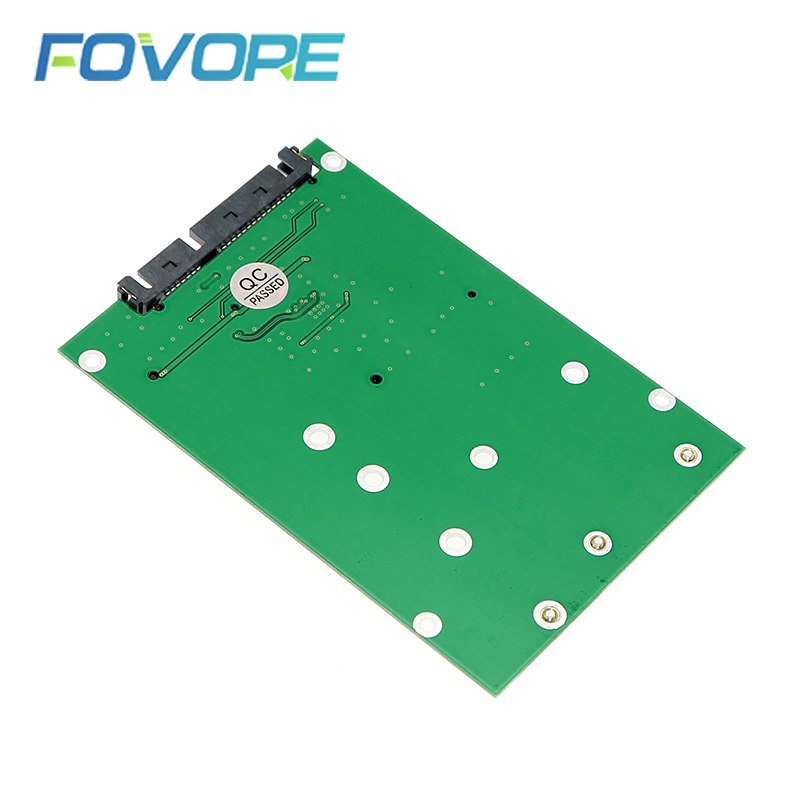

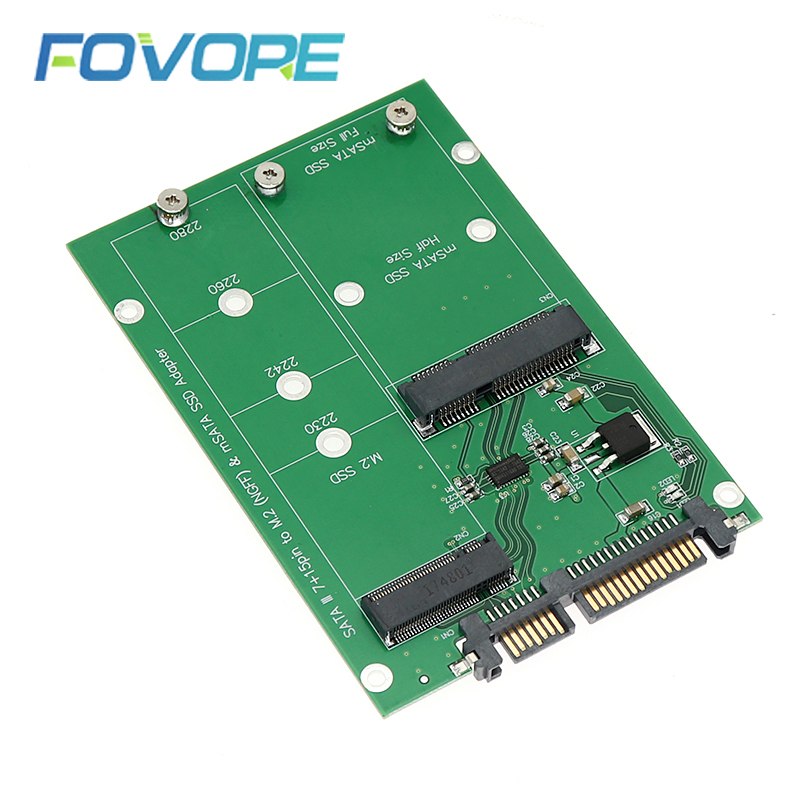

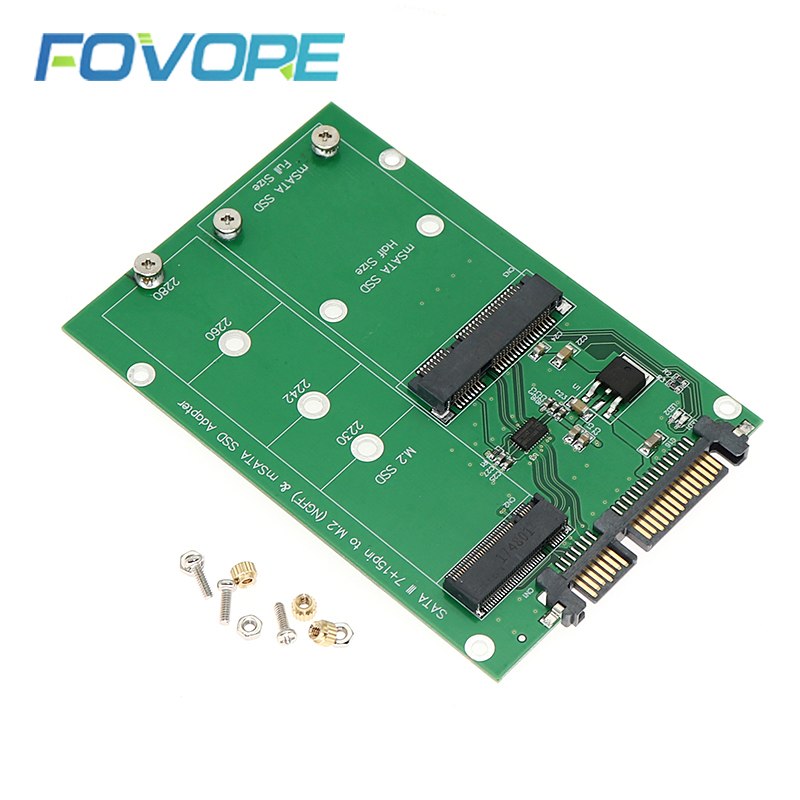

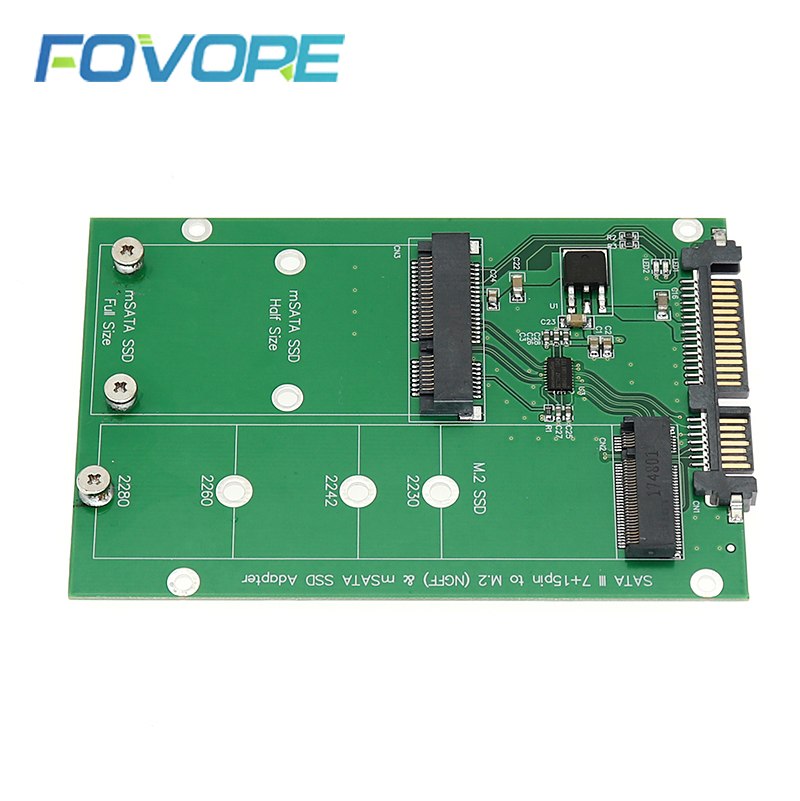

M.2 (NGFF) & mSATA to SATA III Module.
Build in Mini PCI-e 52pin male connector.
Build in M.2 (NGFF) B key male connector.
2.5" SATA SSD Form Factor: 98 x 65 x 5mm.
Green LED indicate power status.
Red LED indicate active status.
Insert both M.2 & mSATA SSD on Board, M.2 SSD is the first priority,mSATA won\'t work.
Support SATA Reversion 3.2.
Compatible with PCI Express M.2 Spec. Version 1.0.
PWM synchronous buck converter Power IC.
3A maximum output current.
Short circuit protection.
In-rush current suppression.
Thermal shutdown protection.
ESD HBM (Human Body Mode)/2KV.
Support the M.2 (NGFF) SSD size
Type 2280-D2-B-M:80mm (L) *22mm (W)
Type 2260-D2-B-M:60mm (L) *22mm (W)
Type 2242-D2-B-M:42mm (L) *22mm (W)
Type 2230-D2-B-M:30mm (L) *22mm (W)
Support the mSATA SSD size
Half size mSATA:26.8mm (L) *30mm (W)
Full size mSATA:50.95mm (L) *30mm (W)
For Micron C400 C500 SSD.
NOTE: Not compatible with MINI PCI-E SSD,eg. Brand ASUS EeePC SSD, Sandisk SSD, they are not same interface, please check before buying!
1 x Msata/NGFF SSD to Sata Converter (not include ssd)
Note:This item come without retail box,but we will pack well before shipping!
